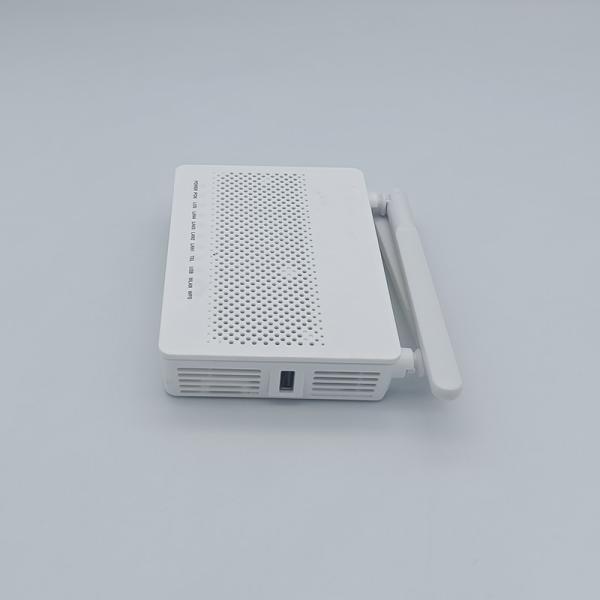

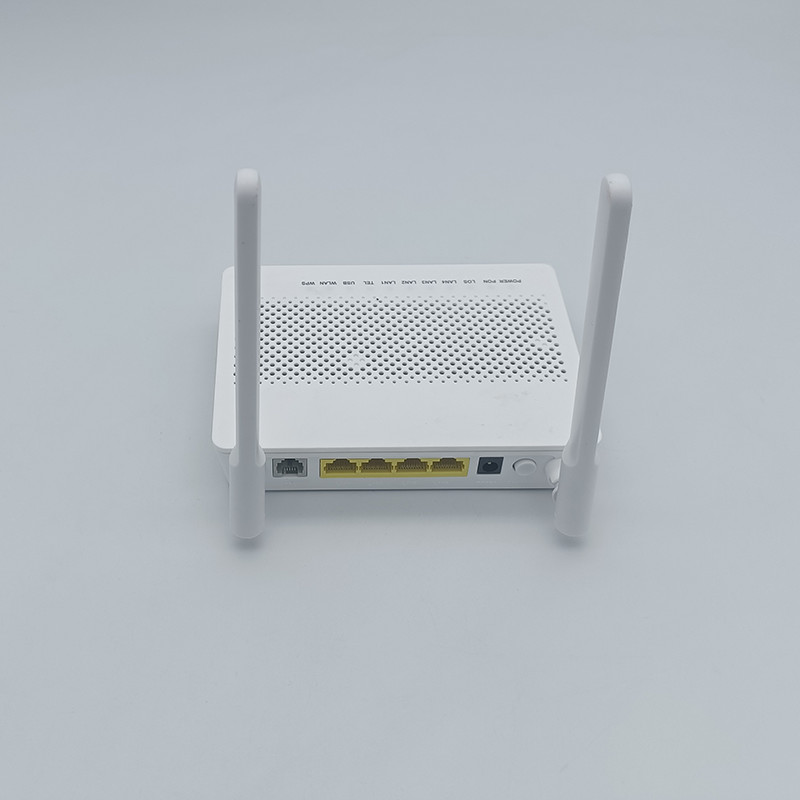

Huawei EG8141A5, an intelligent routing-type ONT.
Product Details
Huawei EG8141A5 provides these features:
GPON Port
• Class B+
• Receiver sensitivity: -27 dBm
• Overload optical power: -8 dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF) of G.984.5
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
• Type B (single-homing & dual-homing)
Ethernet Port
• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• GE: Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
• FE: Auto-adaptive 10 Mbit/s, 100 Mbit/s
POTS Port
• Maximum REN: 4
• G.711A/μ, G.729a/b and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
WLAN
• IEEE 802.11 b/g/n
• 2 x 2 MIMO
• Antenna gain: 5 dBi
• WMM
• Multiple SSIDs
• WPS
• Air interface rate: 300 Mbps
Smart interconnection
• Smart Wi-Fi coverage
• SIP/H.248 auto-negotiation
• Any port any service
• Parental control
• L2/L3(IPv4) forwarding: 1G uplink, 1.3G downlink
Smart service
• Smart Wi-Fi sharing:
Portal/802.1x authentication
SoftGRE-based sharing
• Scheduled Wi-Fi shutdown
Smart O&M
• IPTV video quality diagnosis
• Rogue ONT detection and isolation from the OLT
• Call emulation, and circuit test and loop-line test
• PPPoE/DHCP simulation testing
• WLAN emulation
• eSight management
Layer 3 Features
• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port
Multicast
• IGMP v2/v3 proxy/snooping
• MLD v1/v2 snooping
QoS
• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
Security
• SPI firewall
• Filtering based on MAC/IP/URL addresses
Common O&M
• OMCI/Web UI/TR069
• Variable-length OMCI messages
• Dual-system software backup and rollback
Power Saving
• Indicator power saving
• COC V5
